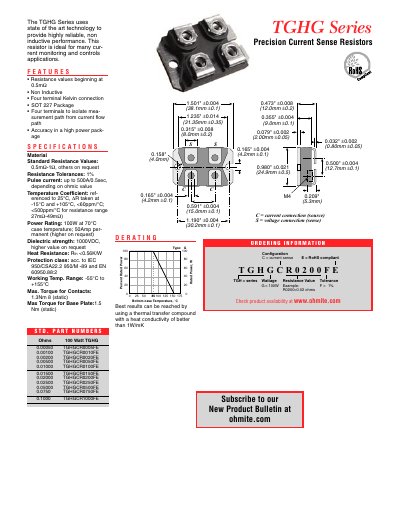

TGHG series precision current sense resistors use state of the art technology to provide highly reliable, non inductive performance. This resistor is ideal for current shunt measurement.
The TGHG Series provides highly reliable, non‑inductive precision current sense resistors for a wide range of monitoring and control applications. Features include four‑terminal Kelvin connections, SOT‑227 packaging, and RoHS compliance.
Key specifications cover resistance values from 0.5 mΩ to 1 Ω, 1 % tolerance, pulse currents up to 500 A for 0.5 s, a power rating of 100 W at 70 °C case temperature, and an operating temperature range of –55 °C to +155 °C. Ordering information and part numbers are provided for easy selection.
| Resistance values | 0.5 mΩ‑1 Ω, others on request |
|---|---|
| Resistance tolerance | 1 % |
| Pulse current | up to 500 A/0.5 s |
| Power rating | 100 W at 70 °C case temperature |
| Dielectric strength | 1000 VDC (higher on request) |
| Operating temperature range | -55 °C to +155 °C |
| Connection type | Four‑terminal Kelvin |
| Package | SOT‑227 |
| RoHS compliance | Yes |
They can handle up to 500 A for 0.5 s, depending on the resistance value.
The resistors operate from –55 °C to +155 °C.
The power rating is 100 W at a 70 °C case temperature.
It uses a four‑terminal Kelvin connection to isolate the measurement path from the current path.
