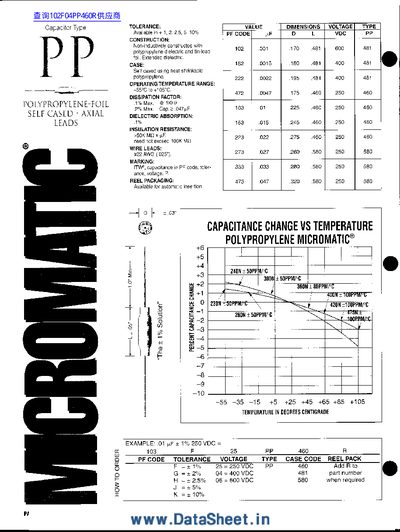

This datasheet provides the key specifications for Micromatic polypropylene foil capacitors with self‑cased axial leads. It includes construction details, electrical characteristics, and packaging information.
The document lists tolerance options, operating temperature range, dissipation factor, dielectric absorption, insulation resistance, wire lead size, marking conventions, and reel packaging suitable for automatic insertion.
| Operating Temperature Range | -55 °C to +105 °C |
|---|---|
| Dissipation Factor (1 kHz) | 1 % max |
| Insulation Resistance | 60 kMΩ (typical) |
| Marking | Capacitance in pF code, tolerance, voltage |
| Reel Packaging | Available for automatic insertion |
The capacitor operates from –55 °C up to +105 °C.
The dissipation factor is 1 % maximum at 1 kHz.
They are supplied on reels suitable for automatic insertion.
