PA80 - PA81 interlocking barrier terminal block. PA81: end plate for Modular PA80. IEC American Standards ABC Dimensions mm (inches) 29 (1.14) 38 (1.50) 11 (0.43) Versions F/F: with tab-to-tab insert, V/F: with screw-to-tab insert, V/F.F: with screw to tab-tab insert, PA81: side closing module Ratings 450V - 20A 600V - 20A Wire size 2.5 sqmm 22 ÷ 12AWG Working Temperature -5 ÷ 110 °C (short time 140 °C) 23 ÷ 221 °F Nominal Temperature (Testing temperature) T110 (140°C) - Plastic Material Polyamide PA6.6 natural colour, UL94-V2, GWT960 °C Metal Parts M4 zinc plated steel screw; 6.3 x 0.8 zinc plated steel tab insert; other parts made in zinc plated steel Accessories PA262 Approvals File Nr. Ratings (sqmm/AWG - V - A - T) Standard References -CA02.00725 2.5 sqmm - 450V - 20A - T110 EN60998-1; EN60998-2-1; EN61210 121240 2.5 sqmm - 450V - 20A(screw) 15A (Tab) - T110 DIN EN60998-1; DIN EN60998-2-1; DIN EN61210 (VDE 0613) E76048 vol. 1 sec. 3 22 ÷ 12AWG - 600V - 20A - 105 °C UL 1059 LR 40455-10 22 ÷ 12AWG - 600V - 20A CSA C22-2 N.158-1987; E.C.N 584B PA80 - PA81 PACKAGING Type P-N Pack. Dim. Pack. (LxHxP) Weight (Kg) PA 80 F/F 300770 1000 40x20x40 10 PA 80 V/F 300771 1000 40x20x40 10 PA 80 V/F.F 300772 1000 40x20x40 10 PA 81 970445 1000 40x20x40 10 PA 262 ACC. 971302÷16 (1) (2) (1) On request. (2) According to (1)

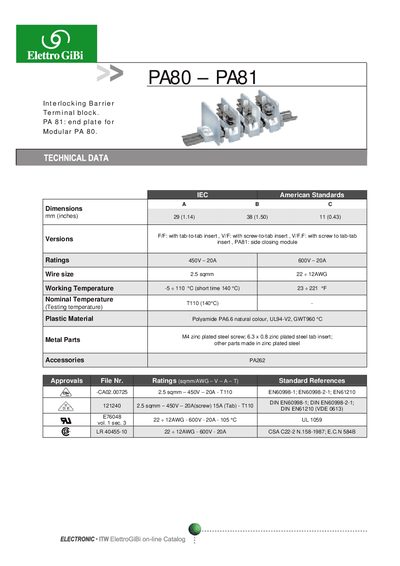

This leaflet provides the key technical data for the Elettro GiBi PA80 and PA81 interlocking barrier modules, including dimensions, electrical ratings, material composition, and approved standards. It also lists the accessories and packaging details for each version.
The document references IEC and American standards, and includes approval numbers such as EN60998‑1, EN60998‑2‑1 and EN61210, ensuring compliance for industrial safety applications.
| Dimensions (L × W × H) | 29 mm × 38 mm × 11 mm |
|---|---|
| Voltage / Current Rating (F/F version) | 450 V – 20 A |
| Wire size | 2.5 sq mm (12 AWG) |
| Working temperature range | -5 °C to +110 °C (short‑time up to 140 °C) |
| Plastic housing material | Polyamide PA6.6, UL94‑V2 |
| Screw material | Zinc‑plated steel |
| Approvals / Standards | EN60998‑1, EN60998‑2‑1, EN61210 |
The PA80 F/F version is rated for 450 V at 20 A.
They operate from –5 °C to +110 °C, with a short‑time limit of 140 °C.
The housing is made of polyamide PA6.6 and meets the UL94‑V2 flame‑rating.
