Gigabyte GA-H61M-S1 Motherboard User Manual

This is the user manual for the Gigabyte GA-H61M-S1 motherboard, which introduces the hardware installation, BIOS program settings and driver installation of the motherboard

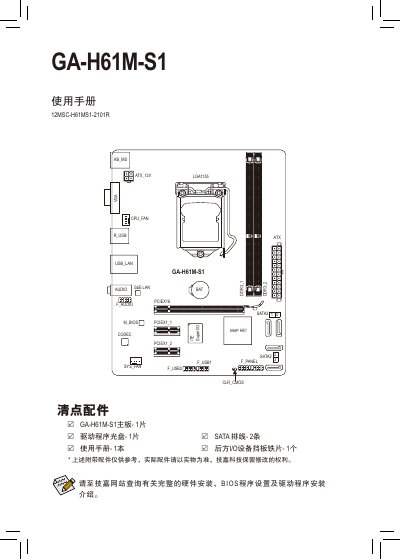

Gigabyte GA-H61M-S1 Motherboard User Manual - cover page
Brand
GA-H61M-S1
Category
Other
Document type
User Manual
Language
Chinese
Pages
6
File format
PDF
File size
1.9 MB
Published
11 May, 2012
Updated
01 October, 2023
Model
GA-H61M-S1
MD5 checksum
A51D3AC057CC0BE53F7445C9B3ABD211
PDF
Gigabyte GA-H61M-S1 Motherboard User Manual PDF

About this manual

This manual covers everything you need to install and configure the Gigabyte GA-H61M-S1 motherboard, including a detailed accessory checklist, CPU and memory installation steps, driver installation procedures, and a description of rear I/O connectors.

It also contains after‑sales service details, warranty terms, legal notices, and environmental compliance information for the product. This manual is written in Chinese.

What's inside

  • Accessory Checklist
  • CPU Installation
  • Memory and Adapter Card Installation
  • Driver Installation
  • Rear I/O Connectors
  • After‑sales Service and Warranty
  • Legal Notice
  • Environmental Statement

Specifications

ChipsetIntel H61
CPU socketLGA1155
Memory slots2 DDR3 slots
USB portsUSB 2.0/1.1
Audio connectorsLine‑in (blue), Line‑out (green), Mic (pink)
LANGigabit Ethernet
