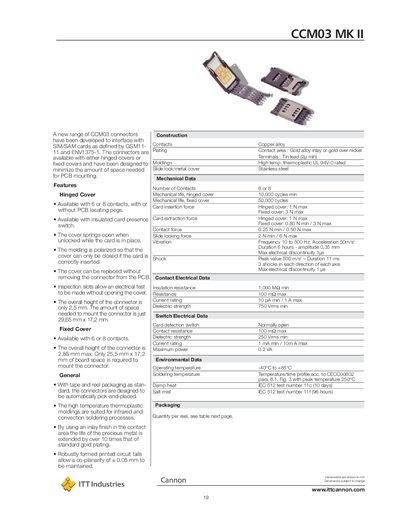

CCM03 MK II is a new range of connectors developed to interface with SIM/SAM cards. It has 6 or 8 contacts and can be connected via a metal cover or a hinged cover. The connector has excellent mechanical and electrical performance.
The CCMO03 MK II series provides compact SIM/SAM card connectors with either hinged or fixed covers, designed to meet GSM 11‑11 and ENVI 1375‑1 standards. Options include 6 or 8 contacts, insulated card‑presence switches, and various cover types for space‑constrained PCB mounting.
Key features include polarized molding, inspection slots for testing without opening the cover, high‑temperature thermoplastic construction, and robust copper‑alloy contacts with gold‑alloy or gold‑over‑nickel finishes. Mechanical and electrical specifications, ordering codes, and dimensional drawings are provided for each variant.
| Number of contacts | 6 or 8 |
|---|---|
| Overall height (hinged cover) | 2.5 mm |
| Overall height (fixed cover) | 2.85 mm max |
| Mechanical life (hinged cover) | 10,000 cycles min |
| Mechanical life (fixed cover) | 50,000 cycles |
| Contact force | 0.25 N min / 0.50 N max |
| Operating temperature | -40 °C to +85 °C |
| Insulation resistance | 1,000 MΩ min |
| Dielectric strength (contact) | 750 V rms min |
The hinged cover is rated for at least 10,000 cycles.
The insulation resistance is specified as 1,000 MΩ minimum.
It can operate from –40 °C up to +85 °C.
The connector is available with either 6 or 8 contacts.
