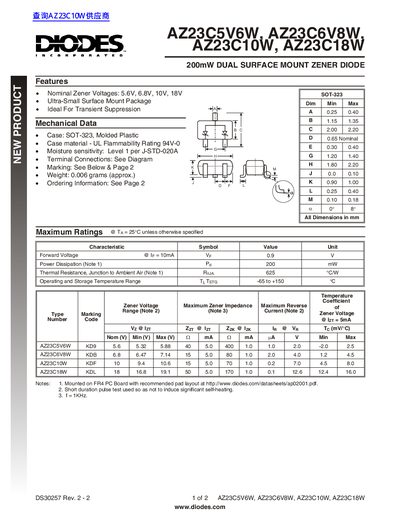

This datasheet provides the feature parameters of AZ23C5V6W, AZ23C6V8W, AZ23C10W, AZ23C18W, including power, temperature range, package type, pin configuration, etc.
The AZ23C series are 200 mW dual surface‑mount Zener diodes offered in four nominal voltages (5.6 V, 6.8 V, 10 V, 18 V). They are intended for transient‑suppression applications and feature an ultra‑small SOT‑323 molded‑plastic package.
Key specifications include a forward voltage of 0.9 V at 10 mA, a power dissipation of 200 mW, and a thermal resistance of 625 °C/W. The devices operate from –65 °C to +150 °C, have a moisture‑sensitivity level 1, and weigh approximately 0.006 g each. Ordering information and package dimensions are provided for tape‑and‑reel or tray shipping.
| Nominal Zener Voltage | 5.6 V, 6.8 V, 10 V, 18 V |
|---|---|
| Forward Voltage @ 10 mA | 0.9 V |
| Power Dissipation | 200 mW |
| Operating Temperature Range | -65 °C to +150 °C |
| Package | SOT‑323, Molded Plastic |
| Weight | 0.006 g (approx.) |
| Moisture Sensitivity Level | Level 1 per J‑STD‑020A |
The AZ23C series is available with nominal Zener voltages of 5.6 V, 6.8 V, 10 V, and 18 V.
Each diode can dissipate up to 200 mW.
They are supplied in an ultra‑small SOT‑323 molded‑plastic surface‑mount package.
The devices operate from –65 °C up to +150 °C.
