The YG861S15R (5A) is a 150V / 5A high voltage Schottky barrier diode with low VF, high voltage, center tap connection, and is used in high frequency operation, DC-DC converters, and AC adapters.
The YG861S15R is a high‑voltage Schottky barrier diode designed for DC‑DC converters and AC adapters. It offers a low forward voltage drop of 0.90 V at 5 A and can operate at high frequencies.

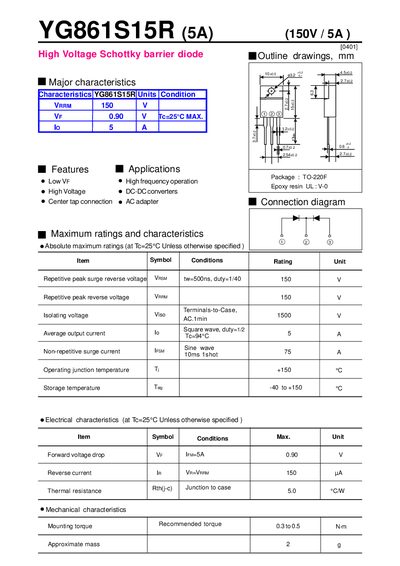

The datasheet lists electrical ratings such as a reverse voltage (VRRM) of 150 V, isolating voltage of 1500 V, and a non‑repetitive surge current of 75 A. Mechanical data include a TO‑220F package, recommended mounting torque of 0.310‑0.5 N·m, and an approximate mass of 2 g.
| Reverse voltage (VRRM) | 150 V |
|---|---|
| Isolating voltage (Viso) | 1500 V |
| Mounting torque | 0.310‑0.5 N·m |
| Approximate mass | 2 g |
| Package | TO‑220F |
The diode is rated for a reverse voltage (VRRM) of 150 V.
The isolating voltage (Viso) is specified as 1500 V.
