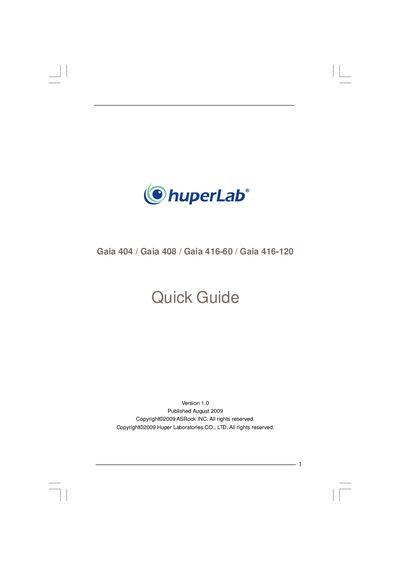

huperLab Gaia404 / Gaia408 / Gaia416-60 / Gaia416-120 Motherboard Quick Guide

Gaia 404 / Gaia 408 / Gaia 416-60 / Gaia 416-120 Quick Guide

Brand: GAIA
Category: Board
Document type: Quick Start Guide
Language: English
Pages: 41
File format: PDF
File size: 12.8 MB
Published: 10 May, 2012
Updated: 30 September, 2023
MD5 checksum: 5F09DAAAF8E5C0B383E26D399B916481
PDF: huperLab Gaia404 / Gaia408 / Gaia416-60 / Gaia416-120 Motherboard Quick Guide PDF

About this manual

This Quick Guide provides step‑by‑step instructions for installing the huperLab Gaia404, Gaia408, Gaia416‑60 and Gaia416‑120 Mini‑ITX motherboards. It includes hardware installation, BIOS configuration, and software setup for the included huperVision surveillance suite.

The document also lists specifications, connector layouts, and safety cautions, helping users configure memory, storage, LAN, and peripheral connections correctly.

What's inside

Introduction
Package Contents
Installation
BIOS Setup Utility
Software Support
huperVision Software Installation
Specifications
Caution Notices

Specifications

Form Factor	Mini‑ITX 6.7‑in x 6.7‑in (17.0 cm x 17.0 cm)
CPU	Intel Dual‑Core Atom Processor 330
Chipset Northbridge	Intel 945GC
Chipset Southbridge	Intel ICH7
Expansion Slot	1 × PCI Express
Audio Codec	Realtek ALC662 5.1 CH HD Audio
SATA Connectors	4 × SATAII 3.0 Gb/s (no RAID, no hot‑plug)
BIOS	4 Mb AMI BIOS

Frequently asked questions

Which operating systems are supported by the Gaia motherboards?

The boards support Microsoft Windows XP and Windows Vista.

How many SATAII connectors are available on the motherboard?

There are four SATAII 3.0 Gb/s connectors.
