This document is the dimension table of ITT Cannon filter models. It lists the sizes, connection methods, capacitance values, and plating methods of each model.

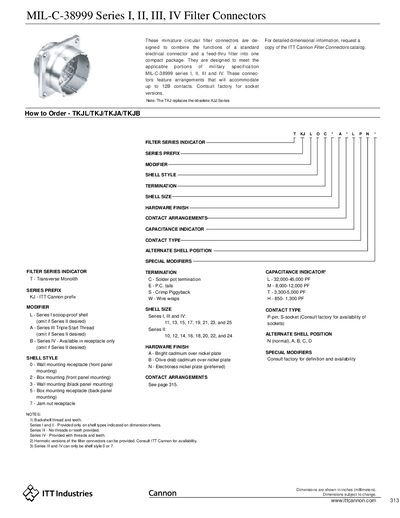

This handbook describes the MIL‑C‑38999 series filter connectors, which combine a standard electrical connector with a feed‑thru filter in a compact, miniature circular package. It covers the series indicators, shell styles, hardware finishes, and contact types for Series I, II, III, and IV.
The document also includes ordering instructions, performance and material specifications such as voltage and current ratings, capacitance values, and detailed dimensions. Additional information on termination options, polarization keys, and optional hermetic versions is provided for designers and purchasers.
| Voltage Rating | 200 VDG - 120 VAG rms 400 Hz |
|---|---|
| Capacitance (L indicator) | 32,000‑45,000 pF |
| Hardware Finish (A) | Bright cadmium over nickel plate |
The L indicator capacitance is 32,000‑45,000 pF.
Use the series prefixes TKJL, TKJ, TKJA, or TKJB as listed in the 'How to Order' section.
Termination options include solder pot (C), PC tails (E), crimp piggyback (S), and wire wraps (W).
