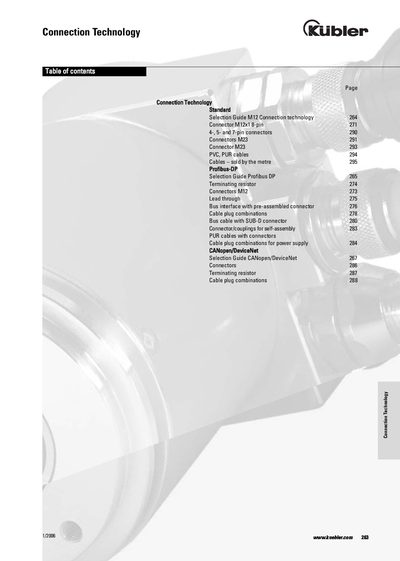

This document is the Kuebler connection technology product catalog, which contains the models, order numbers, applicable products and other information of connectors, cables, terminating resistors, etc.
The Kuebler M12 Connection Technology guide provides an overview of the M12 connector family, including 8‑pin, 4‑, 5‑ and 7‑pin variants, as well as M23 connectors. It lists compatible cable types (PVC and PUR), wiring diagrams, and recommended cable lengths for various fieldbus protocols such as Profibus‑DP and CANopen/DeviceNet.
The document also details technical data such as IP rating, temperature range, rated current and available pre‑assembled couplings. Order codes for each connector and cable combination are provided, helping users select the correct part for encoders and other devices.
| Rated current (8‑pin) | 2 A |
|---|---|
| Rated current (12‑pin) | 1.5 A |
| Cable conductor size | 0.25 mm² |
| Maximum cable length (standard) | 30 m |
Lengths up to 30 m are stocked, and longer lengths can be supplied on request.
Both PVC and PUR cables are supported; PUR cables are oil‑ and seawater‑resistant and suitable for drag‑chain installations.
The 8‑pin version is rated for 2 A.
