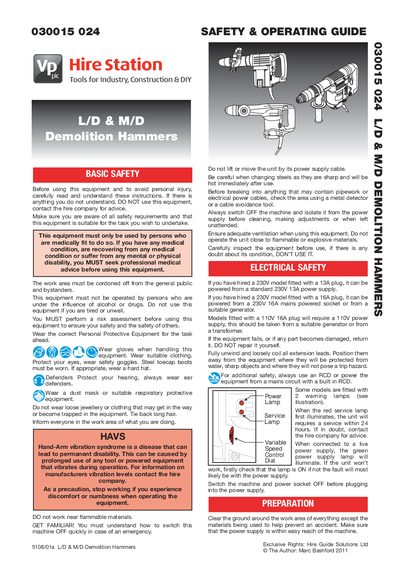

This manual introduces the safe use methods of 5108/01a L/D & M/D Demolition Hammers, including preparation before work, attentions during work and attentions after work.
This guide provides essential safety information and required personal protective equipment for operating the demolition hammer, including gloves, safety goggles, steel‑toe boots, hard hat, ear defenders and respiratory protection. It also outlines risk‑assessment steps, work‑area preparation, and electrical safety for 230 V and 110 V models.
Detailed instructions cover attaching the side handle, fitting steel into the SDS‑max chuck, operating controls such as the variable speed dial and ON/OFF switch, and proper maintenance procedures like steel replacement, cleaning and storage after use.
| Power supply voltage | 230 V or 110 V depending on plug |
|---|---|
| Plug rating | 13 A or 16 A |
Slide the handle’s collar over the hammer’s chuck and secure it by turning the lock knob clockwise.
Move the chuck’s outer sleeve back, insert the steel, then release the sleeve to lock it in place.
