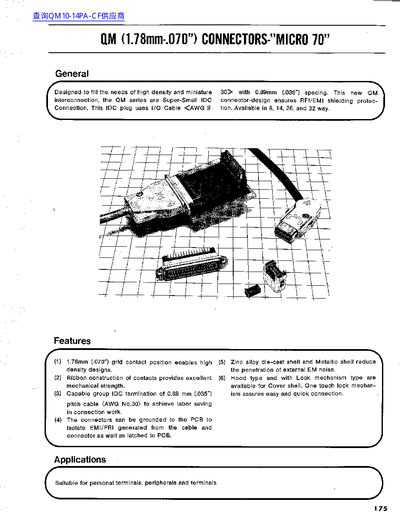

This guide describes the QM series MICRO 70 connectors, which are super‑small IDC connectors designed for high‑density, miniature interconnections using 30 AWG cable with a 0.89 mm pitch. It outlines the connector’s features, such as RFI/EMI shielding, zinc‑alloy die‑cast housing, and lock‑mechanism cover options.
The document includes detailed specifications, ordering information, and step‑by‑step instructions for installing the cover case, mounting the connector on PCBs, and handling precautions. It also lists part numbers for various configurations and provides cleaning and handling recommendations.
| Current Rating | 0.5A |
|---|---|
| Voltage | AC100V |
| Insulation Resistance | 1000MΩ or more DC100V |
| Contact Resistance | 35mΩ or less DC100mA |
| Withstanding Voltage | 300V for 1 minute |
| Hood Material | Zinc alloy die‑cast, silver finish |
| Insulation Material | PET Resin, black |
| Pin Material | Beryllium copper |
| Contact Socket Material | Phosphor bronze plating |
The connector is rated for a current of 0.5 A.
It is available in 8, 14, 26, and 32‑way configurations.
The hood is made of zinc‑alloy die‑cast with a silver finish for EMI shielding.
