TNR ® C SERIES is a new type of TVS diode launched by ON Semiconductor. It has the characteristics of high reliability, high voltage, low power consumption and miniaturization. It is suitable for various electronic equipments of power supply, signal and load line protection applications.

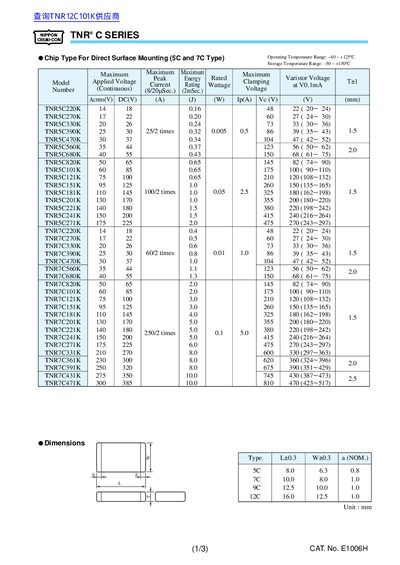

This document provides the specifications for TNR C SERIES chip types intended for direct surface mounting. It includes operating and storage temperature limits, maximum electrical ratings for each part number, and basic package dimensions.
Tables list the part numbers (e.g., TNRSC220K, TNR7C470K, TNR9C220K) together with their continuous current, pulse current, voltage ratings and power dissipation. The catalog number for the series is E1006H. This manual is written in Japanese.
| Operating Temperature Range | -40 °C to +125 °C |
|---|---|
| Storage Temperature Range | -50 °C to +150 °C |
| Catalog Number | E1006H |
The chips operate from –40 °C up to +125 °C.
They can be stored between –50 °C and +150 °C.
The catalog number is E1006H.
