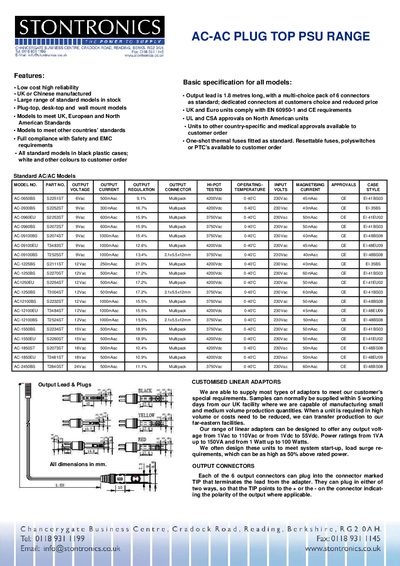

This data table provides detailed information on AC-0650BS, AC-0930BS, AC-0960EU, AC-0960BS, AC-09100BS, AC-09100EU, AC-09100BS, AC-1225BS, AC-1250BS, AC1250EU, AC-1250BS, AC12100BS, AC-12100EU, AC-12100BS, AC-1550BS products, including model, output voltage, output current, output regulation, output connector, high voltage test, operating temperature, input voltage, magnetizing current, approvals, and case style.
The AC‑AC Plug Top PSU Range from Stontronics offers low‑cost, high‑reliability power supplies in plug‑top, desk‑top and wall‑mount formats. All standard models comply with safety and EMC standards, with UK/Euro units meeting EN 60950‑1 and CE, and North American units holding UL and CSA approvals.\n\nStontronics also provides customized linear adapters covering output voltages from 1 Vac to 110 Vac (or 1 Vdc to 55 Vdc) and power ratings up to 150 VA. Each unit includes a 1.8 m output lead with six selectable connectors and optional thermal fuses or polyswitches.
| Output lead length | 1.8 metres |
|---|---|
| Number of output connectors | 6 (standard) |
| Safety approvals (UK/Euro) | EN 60950‑1, CE |
| Safety approvals (North America) | UL, CSA |
| Thermal protection | One‑shot thermal fuses (standard) |
| Power rating range | 1 VA to 150 VA (1 W to 100 W) |
| Output voltage range (custom adapters) | 1 Vac‑110 Vac or 1 Vdc‑55 Vdc |
UK and European units meet EN 60950‑1 and CE, while North American units are approved by UL and CSA.
The standard output lead is 1.8 metres long and includes six selectable connectors.
Yes, Stontronics can supply customized linear adapters with a wide range of output voltages and power ratings.
All models come with a one‑shot thermal fuse as standard, with optional resettable fuses or polyswitches available.
