DF13 series is a 1.25mm pitch miniature crimping connector launched by DNP, which features small size, multiple contacts, and automatic mounting.

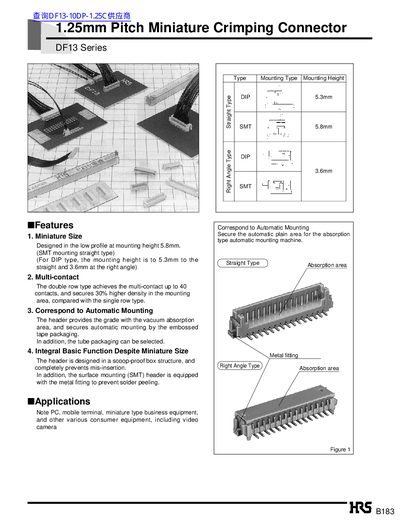

This manual describes the DF13 series of 1.25 mm pitch miniature crimping connectors. It outlines key features such as low‑profile mounting heights (5.8 mm SMT, 5.3 mm DIP), double‑row designs with up to 40 contacts, and a scoop‑proof box structure that prevents mis‑insertion.
Technical data include electrical ratings (1 A, 150 V AC), environmental limits, material finishes, ordering codes, mounting patterns for through‑hole and SMT versions, and recommended soldering and cleaning procedures. Packaging options (tube, embossed tape, reel) and durability cycles are also detailed.
