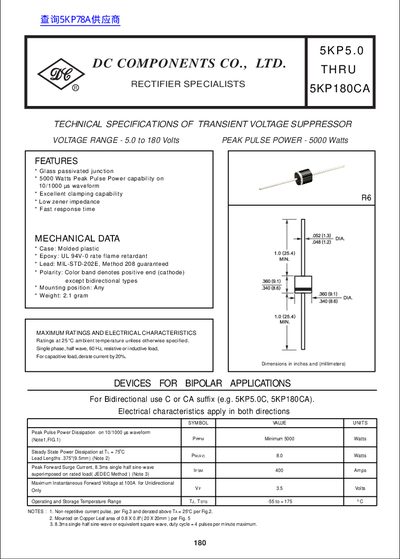

Technical specifications of transient voltage suppressor model 5KP5.0 THRU 5KP180CA
The 5KP series transient voltage suppressors from DC Components provide fast response and high peak pulse power for protecting circuits against voltage spikes. They are available in a range of breakdown voltages from 5.0 V to 180 V and can handle up to 5000 W peak pulse power on a 10/1000 µs waveform.
The devices feature a molded‑plastic case, UL‑94V‑0 flame‑retardant epoxy, and a lead length of 0.375 in (9.5 mm). Mechanical data include a weight of 2.1 g and bidirectional operation options indicated by suffixes such as “C” or “A”. Electrical characteristics such as peak forward surge current and maximum ratings are detailed in the datasheet tables.
| Voltage Range | 5.0 to 180 V |
|---|---|
| Peak Pulse Power | 5000 W |
| Case Material | Molded plastic |
| Weight | 2.1 gram |
| Lead Length | 0.375 in (9.5 mm) |
The 5KP series covers a voltage range from 5.0 V to 180 V.
They can handle up to 5000 W of peak pulse power on a 10/1000 µs waveform.
The case is made of molded plastic.
Each device weighs about 2.1 g.
