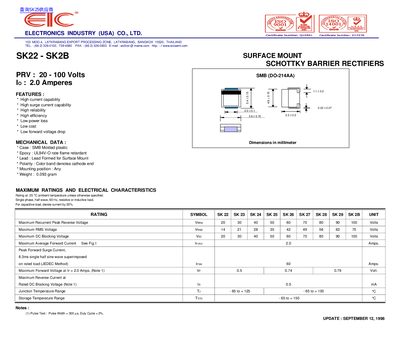

SK22-SK2B is a surface mount Schottky barrier rectifier with a maximum operating voltage of 20-100 volts and a maximum operating current of 2.0 amps.
The SK22‑SK2B series are surface‑mount Schottky barrier rectifiers with high current and surge capability, low forward voltage drop, and high reliability. Features include high efficiency, low power loss, and a molded plastic SMB case.
The document provides mechanical data (SMB case, weight 0.093 g, polarity indicated by color band) and extensive electrical characteristics such as reverse voltage up to 100 V, forward current 2.0 A, peak surge current 60 A, and operating temperature ranges.
| Maximum Recurrent Peak Reverse Voltage | 20‑100 V |
|---|---|
| Maximum RMS Voltage | 14‑70 V |
| Maximum DC Blocking Voltage | 20‑100 V |
| Junction Temperature Range | -65 °C to +125 °C (or +150 °C) |
| Storage Temperature Range | -65 °C to +150 °C |
| Case Type | SMB molded plastic |
| Weight | 0.093 g |
The series can handle a reverse voltage up to 100 V.
