Specifications of V375B5C200B DC-DC converter, including input voltage, output voltage, output power, working temperature range, etc.
The V375B5C200B is a high‑density DC‑DC converter module from Vicor offering 375 V input, 5 V output, and up to 200 W of power. It features a wide input range, programmable output, high efficiency, and low‑noise ZCS/ZVS switching, making it suitable for distributed power and electric vehicle applications.

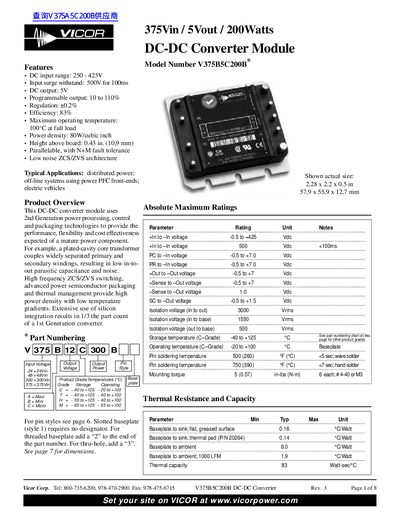

The datasheet details electrical specifications, control pin functions, mechanical dimensions, and parallel operation options, along with safety ratings and isolation requirements for reliable integration into power systems.
| Input voltage range | 250 V – 425 V |
|---|---|
| Output power | 200 W |
| Efficiency | 83 % |
| Isolation voltage (input to output) | 3000 Vrms |
| Maximum operating temperature | 100 °C at full load |
| Weight | 4 ounces |
| Line regulation | +0.02 % |
The module can withstand a 500 V surge for 100 ms.
The module may be disabled by pulling the PC pin below 2.3 V.
It provides 3000 Vrms isolation between input and output.
