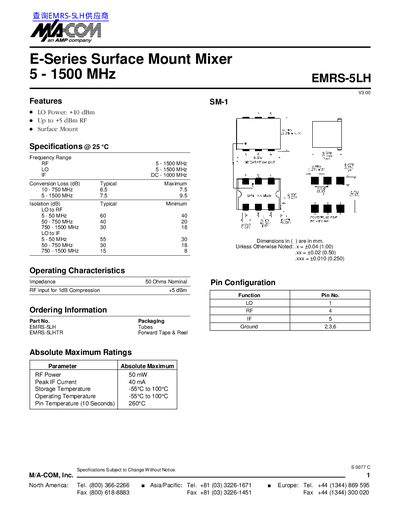

This document describes the features and characteristics of the E-Series Surface Mount Mixer 5 - 1500 MHz EMRS-5LH, including the operating frequency range, conversion loss, isolation, etc.
The EMRS-5LH is a surface‑mount mixer designed for frequencies from 5 MHz to 1500 MHz. It provides up to +10 dBm LO power and can handle RF inputs up to +5 dBm, making it suitable for a range of RF applications.
Key specifications include typical conversion loss of 6.5 dB (5‑750 MHz) to 7.5 dB (5‑1500 MHz), isolation ranging from 60 dB at low frequencies to 30 dB at higher bands, and a 50 Ω nominal impedance. The device is supplied in tube, tape, and reel packaging and operates from –55 °C to 100 °C.
| Frequency Range (RF) | 5 - 1500 MHz |
|---|---|
| Frequency Range (LO) | 5 - 1500 MHz |
| Frequency Range (IF) | DC - 1000 MHz |
| LO Power | +10 dBm |
| Maximum RF Power | +5 dBm |
| Impedance | 50 Ω nominal |
The mixer can provide up to +10 dBm LO power.
The absolute maximum RF power rating is 50 mW.
