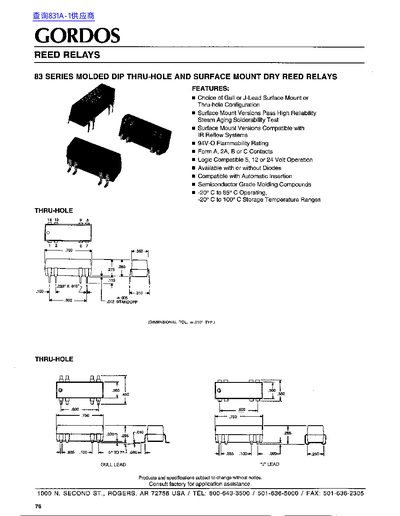

The GORDOS 83 series reed relays are offered in both thru‑hole and surface‑mount configurations with gull‑lead or J‑lead options. They meet high‑reliability steam‑aging solderability tests, are compatible with IR reflow systems, and can be used with automatic insertion equipment. The relays are rated for operation from –20 °C to 85 °C and storage from –20 °C to 100 °C.
The series includes a variety of contact forms (Form A, B, C) and nominal coil voltages of 5 V, 12 V, and 24 V. Key electrical specifications such as maximum switching power, voltage ratings, contact resistance, and insulation resistance are provided for each model variant.
| Maximum Switching DC Watts | 10 W |
|---|---|
| Maximum Voltage DC | 40 V (typical) |
| Initial Contact Resistance | 0.200 Ω |
| Operating Temperature Range | -20 °C to 85 °C |
| Nominal Coil Voltage | 5 V, 12 V, 24 V |
The 83 series offers Form‑A, Form‑B, and Form‑C contact arrangements.
They operate from –20 °C to 85 °C.
Nominal coil voltages of 5 V, 12 V, and 24 V are supported.
Yes, the surface‑mount versions are compatible with IR reflow systems.
