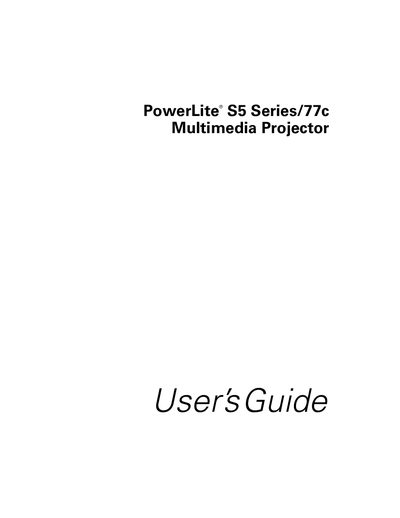

This manual introduces the basic operation methods of PowerLite ® S5 Series/77c multimedia projector, including power on/off, lens focusing, image adjustment, connecting to a computer, and projecting images, and provides usage precautions
This manual covers the PowerLite S5 Series/77c projector, an ultra‑portable device offering up to 2200 ANSI lumens of brightness and native resolutions of 800×600 (S5) or 1024×768 (77c). It explains safety precautions, installation steps, and how to connect various video sources and computers.
Key sections include safety warnings, unpacking, control panel overview, image adjustment, security features, lamp maintenance, and a comprehensive troubleshooting guide to help users resolve common image, sound, and remote‑control issues.
| Brightness (S5 Series) | 2000 ANSI lumens |
|---|---|
| Brightness (77c) | 2200 ANSI lumens |
| Native resolution (S5 Series) | 800 x 600 pixels |
| Supported video formats | NTSC, PAL, SECAM |
| Maximum simultaneous inputs | 3 devices |
You can connect up to three devices to the projector.
The PowerLite S5 Series offers 2000 ANSI lumens of brightness.
