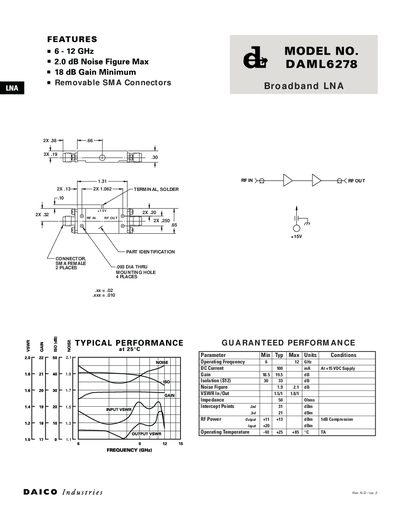

This document is a broadband LNA parameter table, which provides product frequency range, power consumption, gain, isolation, noise figure, VSWR, impedance, intercept points, output power, 1dB compression input, working temperature and other characteristic information.
The DAML6278 is a broadband low‑noise amplifier covering 6‑12 GHz with removable SMA connectors. It offers a maximum noise figure of 2.0 dB and a minimum gain of 18 dB, making it suitable for high‑performance RF applications.
Key performance parameters include a typical gain of about 18.5‑19.5 dB, isolation of 30‑33 dB, VSWR close to 1.0, and a 1 dB compression point between +11 and +13 dBm. The device operates from a +15 VDC supply, draws up to 100 mA, and is rated for temperatures from –40 °C to 85 °C.
| Frequency Range | 6‑12 GHz |
|---|---|
| Noise Figure (max) | 2.0 dB |
| Gain (min) | 18 dB |
| Typical Gain | 18.5‑19.5 dB |
| Isolation (S12) | 30‑33 dB |
| VSWR (In/Out) | ≈1.0 |
| RF Power Output (1 dB compression) | +11 to +13 dBm |
| DC Current | 100 mA |
| Supply Voltage | +15 VDC |
| Operating Temperature | -40 °C to 85 °C |
| Impedance | 50 Ω |
The DAML6278 operates over a 6‑12 GHz frequency range.
The maximum noise figure is specified as 2.0 dB.
It requires a +15 VDC supply.
The device draws up to 100 mA of DC current.
