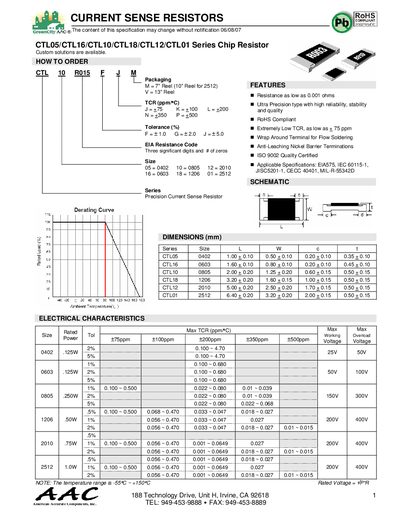

This document introduces the CURRENT SENSE RESISTORS product series produced by American Accurate Components, Inc. The series includes precision current sense resistors with various specifications and sizes. The products have high accuracy and stability, and custom solutions are available according to customer requirements.
The CTL05/CTL16/CTL10/CTL18/CTL12/CTL01 series chip resistors are ultra‑precision current‑sense resistors offered in standard sizes from 0402 to 2512. They feature low resistance values (as low as 0.001 Ω), extremely low temperature coefficient (as low as +75 ppm/°C), RoHS compliance, and a wrap‑around terminal for flow soldering.
Performance data include rated voltage up to 400 V, temperature range from –55 °C to +150 °C, and defined overload and life‑cycle testing procedures. The parts are supplied in various packaging options such as 7‑inch reels, 10‑inch reels for 2512, and tape reels, with quantities ranging from 2,000 to 10,000 units per lot.
| Resistance | 0.001 Ω minimum |
|---|---|
| Temperature Coefficient (TCR) | +75 ppm/°C maximum |
| Operating Temperature Range | -55 °C to +150 °C |
| Rated Voltage | 200 V – 400 V (depending on size) |
They are rated for temperatures from –55 °C up to +150 °C.
The series offers resistance values as low as 0.001 Ω.
