CDE Cornell Dubilier Type CGS Computer Grade Aluminum Electrolytic Capacitor High CV, Screw Terminal Capacitors are high CV aluminum electrolytic capacitors suitable for use in most demanding applications requiring high current filtering or energy storage.

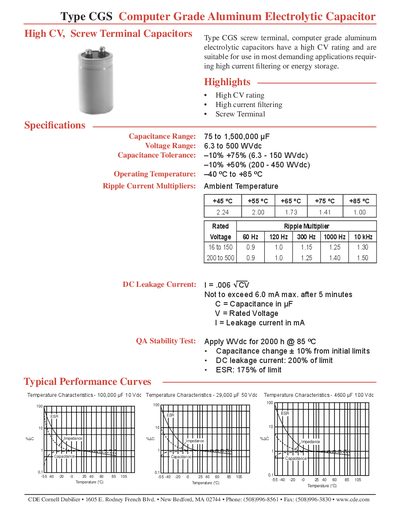

The CGS Computer Grade Aluminum Electrolytic Capacitor series offers high CV rating and high‑current filtering in a screw‑terminal package, suitable for demanding applications such as high‑current filtering or energy storage. The leaflet highlights the high CV rating, high current filtering capability, and screw‑terminal design.
Detailed specifications are listed, including capacitance range, voltage range, tolerance, operating temperature, ripple‑current multipliers, DC leakage current, and ESR limits. Typical performance curves and temperature characteristics are also provided, along with a comprehensive part‑number list for various capacitance and voltage options.
| Capacitance Range | 7 µF to 1,500,000 µF |
|---|---|
| Voltage Range | 6.3 VDC to 500 VDC |
| Capacitance Tolerance (6.3‑150 VDC) | -10 % to +75 % |
| Operating Temperature | -40 °C to +85 °C |
| DC Leakage Current Limit | 200 % of limit |
They are rated from 6.3 VDC up to 500 VDC.
The capacitors operate from –40 °C to +85 °C.
The tolerance is –10 % to +75 % for that voltage range.
They have a high CV rating, high current filtering capability, and a screw‑terminal design.
