The SM5006 series are high-frequency, low-power crystal oscillator module ICs that are manufactured by SEIKO NPC Corporation. They have built-in high-precision thin-film feedback resistors and high-frequency capacitors, which eliminate the need for external components to make a stable third-harmonic oscillator.
The SM5006 series are crystal oscillator module ICs that integrate a high‑frequency, low‑current oscillator and output buffer. Built‑in thin‑film feedback resistors and capacitors eliminate the need for external components, providing a stable 3rd overtone oscillator.

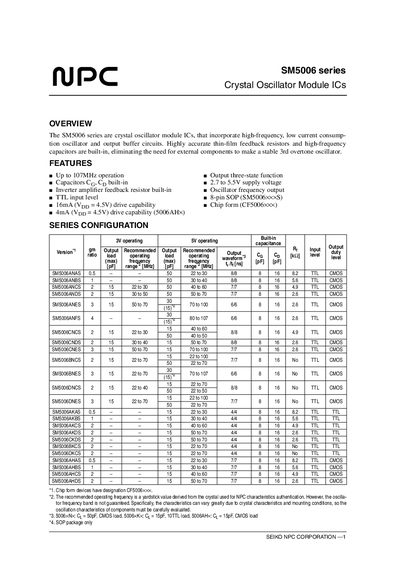

The document includes an overview, features, series configuration tables, ordering information, package dimensions, pin layout, electrical characteristics, recommended operating conditions and legal notices for the SM5006 family.
| Supply voltage range (Vop) | 0.5 V to 7.0 V |
|---|---|
| Input voltage range (Vin) | 0.5 V to Vpp + 0.5 V |
| Output voltage range (Vout) | ‑0.5 V to Vpp + 0.5 V |
| Operating temperature range (Topr) | ‑40 °C to 85 °C |
| Power dissipation (Pp) – 8‑pin SOP | 500 mW |
The supply voltage can be between 0.5 V and 7.0 V.
The series is available in an 8‑pin SOP package (SM5006xxxS) and a chip‑form package (CF5006xxx).
They are rated for temperatures from –40 °C to 85 °C.
