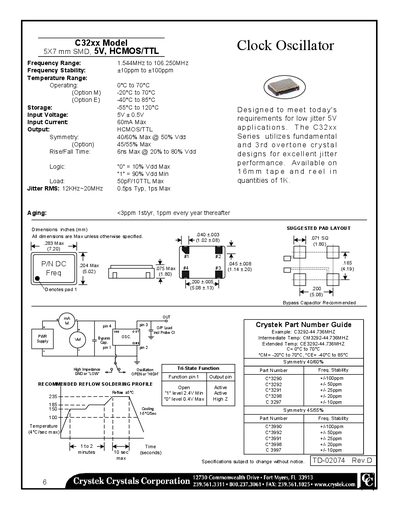

The document provides technical specifications and recommended reflow soldering profile for TD-02074 Rev.D PWR supply, including current, voltage, frequency stability, temperature range, etc.
The C32xx clock oscillator is offered in a 5×7 mm SMD package and operates from a 5 V supply (±0.5 V). It supports HCMOS/TTL logic levels and is designed for low‑jitter 5 V applications, using fundamental and 3rd‑overtone crystal designs. The part is supplied on 16 mm tape and reel in quantities of 1 K.
Key specifications include a frequency range of 1.544 MHz to 106.250 MHz, frequency stability of +10 ppm to +100 ppm, operating temperature from 0 °C to 70 °C, and storage temperature from –55 °C to 120 °C. Input current is limited to 60 mA max, output load is 40 %/60 % (typical) with a recommended load of 50 pF/10 pF TTL max, and RMS jitter is 12 kHz over 2 MHz–20 MHz. Rise/fall time is specified as 6 ns max (20 %–80 % Vdd).
| Frequency Range | 1.544 MHz to 106.250 MHz |
|---|---|
| Frequency Stability | +10 ppm to +100 ppm |
| Operating Temperature Range | 0 °C to 70 °C |
| Storage Temperature Range | -55 °C to 120 °C |
| Input Current | 60 mA max |
| Output Logic | HCMOS/TTL |
| Load Capacitance | 50 pF/10 pF TTL max |
| Jitter (RMS) | 12 kHz (2 MHz–20 MHz) |
| Symmetry | 40 %/60 % max @ 50 % Vdd |
| Rise/Fall Time | 6 ns max @ 20 %–80 % Vdd |
It covers frequencies from 1.544 MHz up to 106.250 MHz.
The oscillator has an RMS jitter of 12 kHz measured between 2 MHz and 20 MHz.
It operates from 0 °C to 70 °C.
