ICP Electronics PPC-5150 Series Panel PC User Manual

This is the user manual for the ICP Electronics Inc. PPC-5150 Series 15” TFT Panel PC

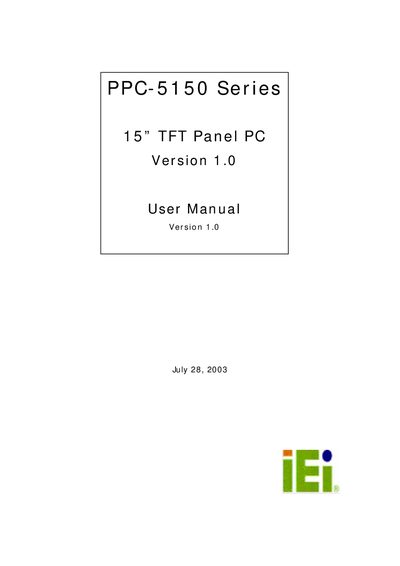

ICP Electronics PPC-5150 Series Panel PC User Manual - cover page
Brand
PPC-5150
Category
All-in-One Desktops
Document type
User Manual
Language
English
Pages
29
File format
PDF
File size
1.4 MB
Published
09 May, 2012
Updated
01 October, 2023
MD5 checksum
73B674CF72D724763F53FE42B251D722
PDF
ICP Electronics PPC-5150 Series Panel PC User Manual PDF

About this manual

This manual introduces the PPC-5150 Series, a 15" TFT Panel PC designed for industrial environments. It outlines the hardware components, optional touch screens, and the system's IBM PC/AT compatibility.

The document covers system setup, including power‑supply installation, drive‑disk mounting, panel and wall mounting, and provides detailed specifications for the display, power supply, dimensions, and environmental limits.

What's inside

  • Introduction
  • System Setup
  • Exploded Diagrams
  • User Mode OSD & Brightness
  • Display Interface
  • Touch Panel Controller
  • Features
  • Specifications
  • Power Supply
  • Mounting Options

Specifications

Display size15" TFT LCD
Resolution1024x768
Brightness250 cd/m²
Power supply modelUPF200-AA
Power supply output200 W ATX
Aluminum front panel dimensions410mm x 309mm x 8mm (WxHxD)
Cabinet dimensions383.6mm x 282.6mm x 99.9mm (WxHxD)
