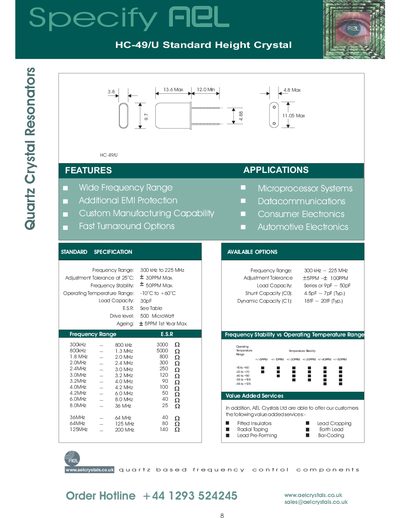

This document is the product information sheet of HC-49/U standard height crystal quartz resonators of AEL Crystals Ltd. It introduces the features and characteristics of the product, including frequency range, resonant frequency, resonant accuracy, additional EMI protection, custom manufacturing capability, fast turnaround options, etc.
The HC-49/U standard height crystal from AEL is designed for a wide range of applications including microprocessors, data communications, consumer electronics, and automotive electronics. It offers a broad frequency range, additional EMI protection, and custom manufacturing capabilities.
Key specifications include a frequency range of 300 kHz to 225 MHz, load capacity of 30 pF, operating temperature from –10 °C to +60 °C, and a drive level of 500 µW. Ordering can be done via the hotline +44 1293 524245 or by contacting [email protected].
| Frequency Range | 300 kHz to 225 MHz |
|---|---|
| Adjustment Tolerance at 25°C | +30 PPM Max |
| Load Capacity | 30 pF |
| Operating Temperature Range | -10°C to +60°C |
| Drive Level | 500 µW |
| Shunt Capacity (C0) | 4.5 pF ~ 7 pF (Typ.) |
The HC-49/U crystal covers a frequency range from 300 kHz to 225 MHz.
The typical load capacity is 30 pF.
Orders can be placed by calling +44 1293 524245 or emailing [email protected].
