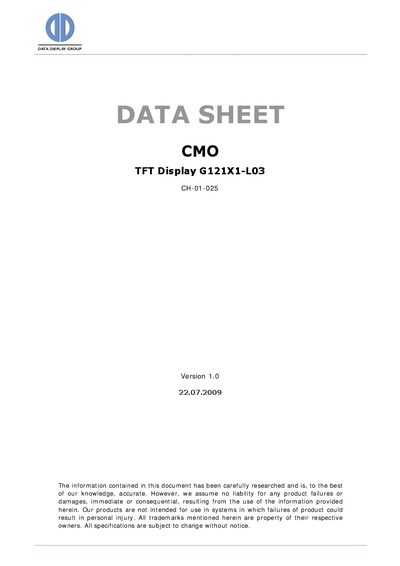

This document is a datasheet for CMO TFT Display G121X1-L03, describing the features and characteristics of the product.
The G121X1-L03 is a 12.1‑inch TFT‑LCD module featuring a white LED backlight, 20‑pin LVDS interface, and support for 1024 × 768 XGA resolution with up to 16.2 M colors. It is designed for use in monitors, industrial equipment, amusement devices, and vehicle displays.
The datasheet provides detailed mechanical dimensions, electrical ratings, absolute maximum limits, and environmental specifications, along with pin assignments, timing diagrams, and packaging information. It also includes safety and handling precautions for reliable integration.
| Diagonal Size | 12.1 inch |
|---|---|
| Active Area | 245.76 mm × 184.32 mm |
| Resolution | 1024 × 768 pixels (XGA) |
| Display Colors | 262k / 16.2 M |
| Power Consumption | 13.6 W typical |
| Operating Ambient Temperature | -30 °C to +80 °C |
| Power Supply Voltage (VCC) | -0.3 V to 7 V |
| Backlight Converter Voltage | -0.3 V to 18 V |
| Enable Voltage (EN) | 5.5 V |
The module supports a 1024 × 768 XGA resolution.
Typical power consumption is 13.6 W.
The module can operate from –30 °C to +80 °C.
