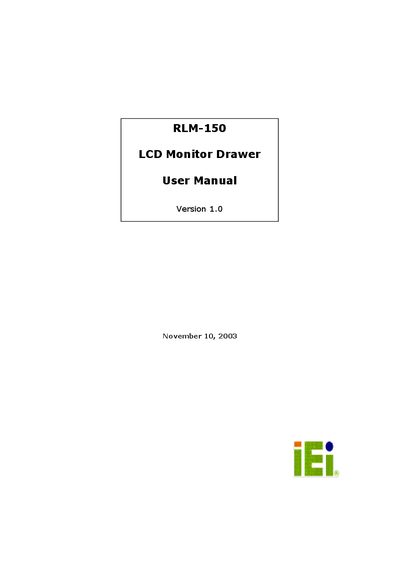

This document is a user manual for the RLM-150 LCD monitor drawer. It describes the features and functions of the product, as well as provides a guide for usage and display settings.
The RLM-150 is a 15‑inch TFT LCD monitor integrated into a rack‑mountable drawer. This manual provides an overview of its features, specifications, and step‑by‑step instructions for installation and use in industrial environments.
Key sections include a checklist of required items, detailed hardware specifications, connection diagrams for VGA, USB, and RS‑232 ports, power‑adapter information, and an exploded view of the unit for service and parts identification.
| Display Type | 15" TFT color |
|---|---|
| Resolution | 1024 x 768 |
| Brightness | 250 cd/m2 |
| Supply Voltage (logic) | 3.3 V |
| Standard Power Adapter Output | +12 VDC / 3.75 A |
| Power Adapter Input Voltage Range | 90 to 264 VAC |
| Power Adapter MTBF | 150,000 hours |
| Depth | 510 mm |
| Operating Temperature | 0 °C to 50 °C |
Connect the standard 15‑pin VGA cable from the RLM-150 VGA port to the computer’s VGA output.
The monitor can operate between 0 °C and 50 °C.
Follow Step 4 in the installation section: OPEN Monitor Drawer.
