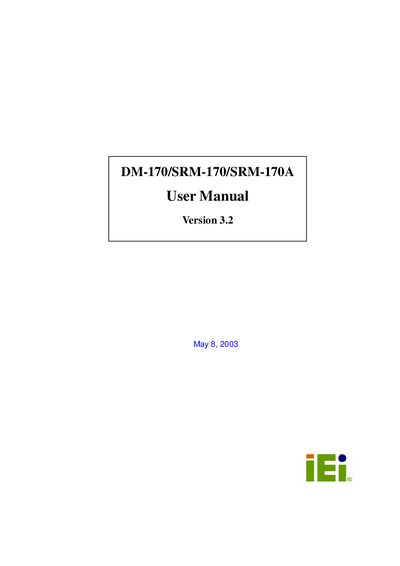

This manual introduces the product information, system setup and LCD installation of DM-170/SRM-170/SRM-170A.
The DM‑170, SRM‑170 and SRM‑170A are 17‑inch flat‑panel displays designed for harsh industrial environments such as steel plants and warehouses. They offer multiple mounting options, DVI and VGA inputs, and optional touch‑screen capability.
This manual provides product specifications, step‑by‑step system setup, front‑panel operation, OSD navigation, and an accessory list. It also includes power‑supply details, environmental limits, and maintenance information.
| Display size | 17.0" |
|---|---|
| Resolution | 1280 x 1024 |
| Brightness | 250 cd/m² (DM-170) / 700 cd/m² (SRM-170A) |
| Input interfaces | DVI and Analog VGA |
| Input voltage range | 90‑264 VAC (DM-170) / 100‑240 VAC (SRM‑170/170A) |
| Operating temperature | 0‑50 °C (DM-170) / 0‑40 °C (SRM‑170/170A) |
| LCD MTBF | 50,000 hours |
| Backlight MTBF | 25,000 hrs (DM-170) / 20,000 hrs (SRM‑170A) |
| Mounting options | Panel, arm (75/100 mm VESA), rack, wall |
Use the LEFT and RIGHT buttons for manual up/down, or press the Brightness Auto button for automatic adjustment based on ambient light.
The displays can be mounted directly on a panel, on an arm using 75 mm or 100 mm VESA‑compatible pads, or installed in a rack or wall‑mount kit.
Both DVI digital video and analog VGA signals are accepted via the AV‑0911A interface board.
The DM‑170 accepts 90‑264 VAC input, while the SRM‑170/170A accept 100‑240 VAC; the supplied PSU provides +12 V and +5 V outputs.
