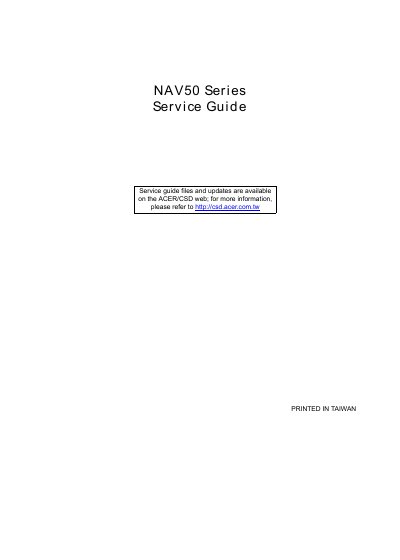

This document is the service guide for the NAV50 series, providing information on product maintenance and updates.
This service guide covers the full hardware specifications of the Acer NAV50 Series notebook, including processor, memory, display, storage, and dimensions. It also lists system features, BIOS utilities, and supported operating systems.
The manual includes step‑by‑step disassembly and replacement procedures for major components such as the LCD, battery, hard drive, and keyboard, as well as troubleshooting tables for common failures, POST codes, and FRU part numbers.
| Operating System | Genuine Windows XP Home (SP3), Windows 7 Starter, Windows 7 Home Basic (China only) |
|---|---|
| Processor | Intel Pineview‑M (N450, N470) 1.66 GHz |
| Memory | Up to 2 GB DDR2 667 MHz SDRAM via one SO‑DIMM slot |
| Display | 10.1" HD 1280 × 720 WXGA LED‑backlit TFT LCD (or 10.1" SD 1024 × 600 WSVGA) |
| Dimensions | 258.5 × 185 × 25.2 mm (10.17 × 7.28 × 0.99 in) |
It uses an Intel Pineview‑M processor (models N450 or N470) running at 1.66 GHz.
The notebook can be equipped with a 10.1" HD 1280 × 720 WXGA LED‑backlit TFT LCD or a 10.1" SD 1024 × 600 WSVGA LED‑backlit TFT LCD.
The system supports up to 2 GB of DDR2 667 MHz SDRAM using a single SO‑DIMM slot.
