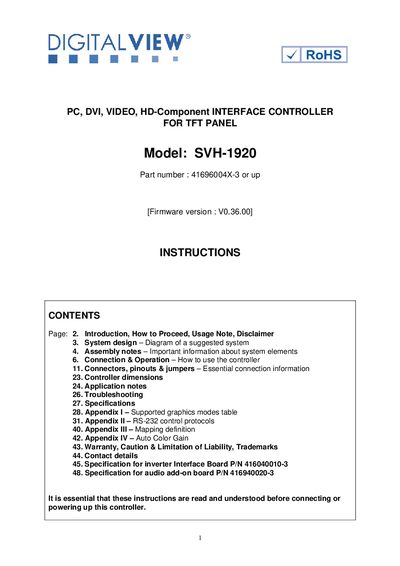

DIGIALVIEW PC DVI VIDEO HD-Component INTERFACE CONTROLLER FOR TFT PANEL Model: SVH-1920 Part number : 41696004X-3 or up [Firmware version : V0.36.00] INSTRUCTIONS

This is the user manual of SVH-1920 controller.

Brand: DIGIALVIEW
Document type: User Manual
Language: English
Pages: 49
File format: PDF
File size: 639 KB
Published: 09 May, 2012
Updated: 01 October, 2023
MD5 checksum: AC3D606281B2639CFC30CD6325D5761C
PDF: DIGIALVIEW PC DVI VIDEO HD-Component INTERFACE CONTROLLER FOR TFT PANEL Model: SVH-1920 Part number : 41696004X-3 or up [Firmware version : V0.36.00] INSTRUCTIONS PDF

About this manual

The SVH-1920 controller from Digital View provides a versatile interface for TFT LCD panels, supporting DVI, HDMI‑component, VGA, composite, S‑Video and optional HD‑SDI inputs. It includes detailed guidance on system design, assembly, wiring, jumper settings, and operation, as well as troubleshooting and specifications.

The manual covers power requirements (12 V/24 V DC regulated supply), connector pinouts, OSD functions, optional audio and HD‑SDI add‑on boards, and safety considerations for installers and developers.

What's inside

Introduction
System Design
Assembly Notes
Connection & Operation
Connectors, Pinouts & Jumpers
Controller Dimensions
Application Notes
Troubleshooting
Specifications
Appendices (Graphics Modes, RS‑232 Protocols, Mapping, Auto Color Gain)

Specifications

DVI Input Support	Up to 1920x1200 @ 60 Hz
Power Input	12 V/24 V DC regulated
Typical Power Rating	3.5 A supply sufficient for most panels
Audio Add‑on Board Supply Voltage	+12 V, +5 V
Audio Add‑on Board Output Power	2.0 W into 4 Ω load

Frequently asked questions

How long may the LVDS signal cable be for optimal performance?

The LVDS signal cable should not exceed 46 cm (18 inches) to maintain signal integrity.

What power supply is required for the controller?

A regulated 12 V or 24 V DC supply is required, typically a 3.5 A rated supply for most panel configurations.
