P1 relay is a 1 pole telecom and signal relay, polarized, through hole type (THT) or surface mount technology (SMT) produced by Telerelay. It has three types of relays: non-latching with 1 coil, latching with 2 coils and latching with 1 coil. It has TTL standard modules directly triggerable, 13.5 x 7.85 mm slim line, 1A switching current, 1 changeover contact (1 form C/SPDT), bifurcated contacts, immersion cleanable and high sensitivity results in low nominal power consumption. It has typical applications including automotive equipment, office equipment, measurement and control equipment, medical equipment and safety equipment.

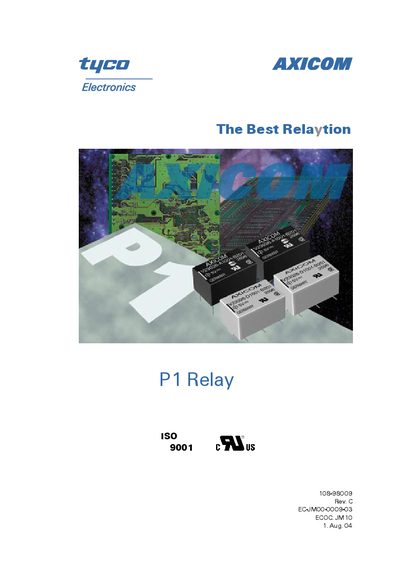

The P1 Relay V23026 is a 1‑pole telecom and signal relay offered by AXICOM. It is available in both through‑hole (THT) and surface‑mount (SMT) versions, with non‑latching, latching‑1‑coil, and latching‑2‑coil options. The relay features a slim 13.5 × 7.85 mm package, bifurcated contacts, immersion‑cleanable construction, and low power consumption (65‑130 mW non‑latching, 30‑150 mW latching).
The datasheet lists detailed electrical specifications such as a 1 A switching current, 125 Vde switching voltage, and surge‑voltage ratings of 2.5 kV (2/10 µs) and 1.5 kV (10/160 µs). Mechanical data include dimensions, mounting options, and environmental ratings (IP67). Compliance with Bellcore GR‑1089, FCC Part 68, and IEC/EN 60950 is documented, along with packaging details for both THT and SMT versions.
| Switching current | 1 A |
|---|---|
| Coil power consumption (non‑latching) | 65 – 130 mW |
| Surge voltage resistance (coil to contact) | 2.5 kV (2/10 µs) |
| Package size | 13.5 × 7.85 mm |
The relay can switch up to 1 A of current.
Non‑latching versions consume 65‑130 mW, while latching versions consume 30‑150 mW.
It meets 2.5 kV (2/10 µs) per Bellcore GR‑1089 and 1.5 kV (10/160 µs) per FCC Part 68.
