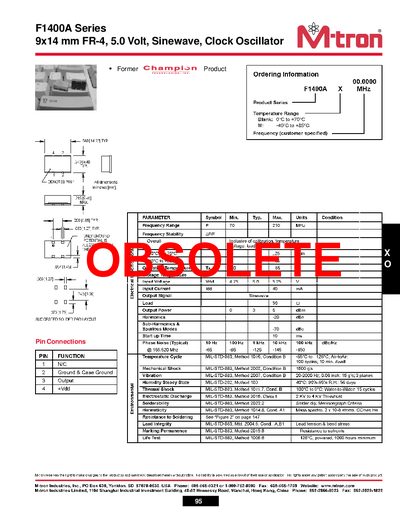

95 X O F1400A Series 9x14 mm FR-4, 5.0 Volt, Sinewave, Clock Oscillator Pin Connections • Former Product OBSOLETE
The F1400A Series is a 9x14 mm FR‑4 clock oscillator that runs from a 5.0 V supply and provides a sine‑wave output. Key electrical specifications include a frequency range of 70‑210 MHz, typical input current of 40 mA, startup time of 10 ms, and output power around -3 to -6 dBm.
The device is qualified for a temperature range of –40 °C to +85 °C (M range) and meets multiple MIL‑STD‑883 reliability tests such as mechanical shock, vibration, humidity, thermal shock, and electrostatic discharge. Recommended solder pad layout and pin connections are provided for proper assembly.
| Package size | 9x14 mm FR‑4 |
|---|---|
| Supply voltage | 5.0 V |
| Startup time | 10 ms |
| Operating temperature range (M) | -40 °C to +85 °C |
The device operates from –40 °C to +85 °C (M range).
The startup time is specified as 10 ms.
