5W single and dual output DC-DC converters, wide input voltage range, high efficiency, low power consumption, 24-PIN DIP package, input / output isolation, continuous short circuit protection, wide operating temperature range, compatible with multiple manufacturers

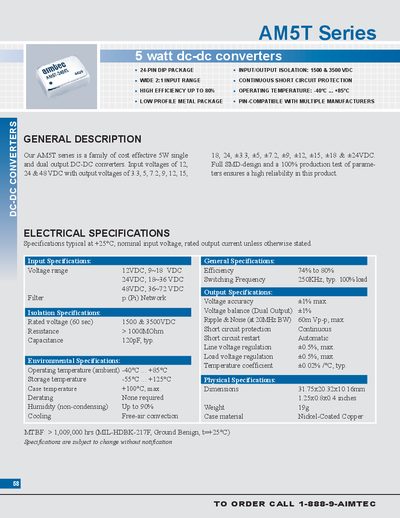

The AM5T Series from Aimtec provides a family of cost‑effective 5 W DC‑DC converters available in single‑output and dual‑output versions. Models cover a wide range of input voltages (12‑48 V) and output voltages from 3.3 V to 24 V, with high efficiency and built‑in short‑circuit protection.
Key specifications include input voltage ranges of 12 VDC to 48 VDC, efficiencies between 74 % and 80 %, switching frequency of 250 kHz, isolation ratings of 1500 VDC and 3500 VDC, and an operating temperature range of –40 °C to +85 °C. The converters are housed in a low‑profile metal package weighing 19 g and measuring 31.75 × 20.32 × 10.16 mm.
| Efficiency | 74 % – 80 % |
|---|---|
| Switching frequency | 250 kHz (typ.) |
| Isolation voltage | 1500 VDC / 3500 VDC |
| Operating temperature | -40 °C … +85 °C |
| Weight | 19 g |
| Dimensions | 31.75 × 20.32 × 10.16 mm |
| MTBF | > 1,009,000 hrs |
The converters achieve an efficiency between 74 % and 80 %.
They are rated for isolation voltages of 1500 VDC and 3500 VDC.
The devices operate from –40 °C up to +85 °C ambient temperature.
The MTBF is specified as greater than 1,009,000 hours.
