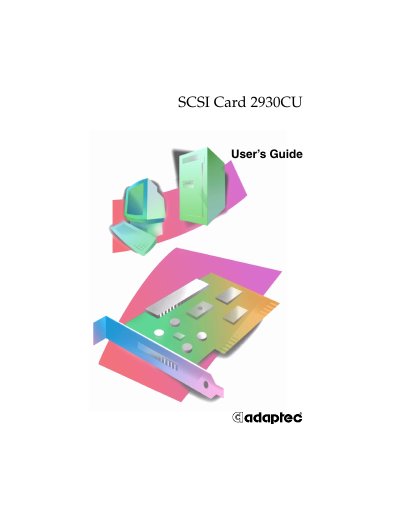

Adaptec 2930CU SCSI Card User Guide

2930CU User's Guide

Brand: SCSI
Category: Other Computer Accessories
Document type: User Manual
Language: English
Pages: 70
File format: PDF
File size: 1.6 MB
Published: 09 May, 2012
Updated: 30 September, 2023
MD5 checksum: 3235D5E4E99FD0307A32A101020BF566
PDF: Adaptec 2930CU SCSI Card User Guide PDF

About this manual

This guide covers everything needed to get the Adaptec 2930CU SCSI Card up and running, including unpacking, installing the card, registering it with its TSID number, connecting internal and external SCSI devices, and installing the appropriate Windows drivers. Detailed instructions for Windows 95/98/ME, Windows 2000/XP, and Windows NT 4.0 are provided, along with troubleshooting tips and advanced configuration parameters.

The manual also lists warranty terms, technical support contact numbers worldwide, and regulatory compliance statements for FCC, CE, and other regions. It includes a cable catalog with part numbers and maximum cable lengths, and directs users to the Adaptec website for ordering accessories.

What's inside

Getting Started
Installation Process
Installing the SCSI Card
Registering Your SCSI Card
Installing SCSI Devices
Installing Drivers
Verifying Driver Installation
Removing the SCSI Card
Cable Information
Regulatory Compliance

Specifications

Data transfer rate (Fast SCSI)	10 MB/sec
Data transfer rate (Ultra SCSI)	20 MB/sec (8‑bit) / 40 MB/sec (16‑bit)

Frequently asked questions

How do I register the SCSI card?

Locate the 12‑digit TSID number on the white bar‑coded label attached to the card and use it when registering the product.

Where can I obtain SCSI cables for the card?

Adaptec provides SCSI cables and you can order them through the Adaptec website.
