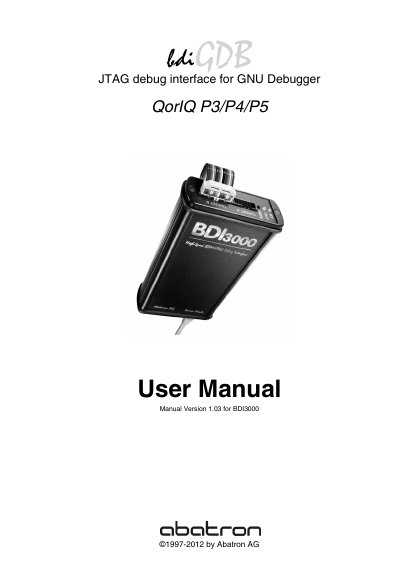

This manual describes the use of the bdiGDB JTAG debug interface.
The BDI3000 is a compact JTAG/COP debugging interface that connects a host PC to QorIQ P3/P4/P5 target processors via a 10/100 BASE‑T Ethernet port or a serial line. It supplies target voltages of 1.2 – 5.0 V and includes status LEDs for power and operation mode.
The manual covers hardware installation, cable connections to the target and host, power‑supply requirements, configuration software setup for Linux/Unix or Windows, GDB usage, technical specifications, environmental and warranty information, as well as troubleshooting and maintenance procedures.
| Operating Voltage | 5 VDC ± 0.25 V |
|---|---|
| Power Supply Current | typ. 500 mA, max. 1000 mA |
| RS232 Baud Rates | 9 600 – 115 200 |
| Network Interface | 10/100 BASE‑T Ethernet |
| BDM/JTAG Clock | up to 32 MHz |
| Supported Target Voltage | 1.2 – 5.0 V |
| Operating Temperature | +5 °C … +60 °C |
| Size | 160 × 85 × 35 mm |
| Weight (without cables) | 280 g |
| Host RS232 Cable Length | 2.5 m |
It supports target systems with voltages from 1.2 V to 5.0 V.
