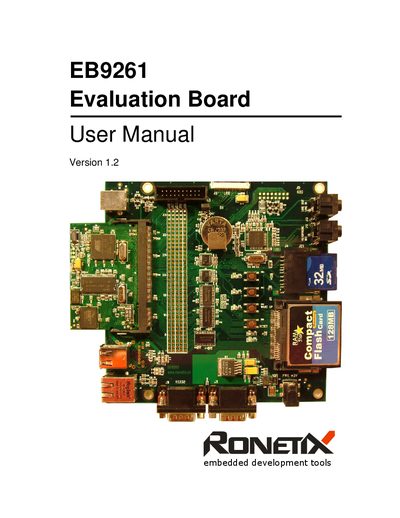

EB9261 Evaluation Board User Manual, which introduces the function characteristics, usage methods and precautions of the evaluation board
The EB9261 Evaluation Board is a development kit that enables real‑time code development and evaluation using the AT91SAM9261 microcontroller. The kit includes a CPU module (PM9261), a base board (BB9261), a 5 V/1 A power supply, optional JTAG emulator, and a DVD with software and documentation.
The manual covers the board’s hardware description, memory configuration, power requirements, temperature ranges, and step‑by‑step getting‑started guides for Linux and Windows environments, as well as electrostatic handling warnings and revision differences.
| Processor | ARM926EJ‑S (210 MIPS at 190 MHz) |
|---|---|
| Flash Memory | 4 Mbyte 16‑bit Parallel Flash (boot capable) |
| SDRAM | 64 Mbyte 32‑bit SDRAM |
| NAND Flash | 2 Gbit (8 or 16‑bit) NAND Flash (boot capable) |
| SPI DataFlash | 16 Mbits SPI DataFlash AT45DB161B |
| Power Supply | 5 V / 1 A DC |
| CPU Module Dimensions | 67.6 mm × 47.0 mm |
| Base Board Dimensions | 145 mm × 145 mm |
| Temperature Range (Standard) | 0 °C to +70 °C |
| Temperature Range (Industrial) | -40 °C to +85 °C |
The EB9261 requires a DC power supply of 5 V / 1 A.
The PM9261 module includes three USARTs.
It is available in a standard range of 0 °C to +70 °C and an industrial range of -40 °C to +85 °C.
The CPU module measures 67.6 mm by 47.0 mm.
