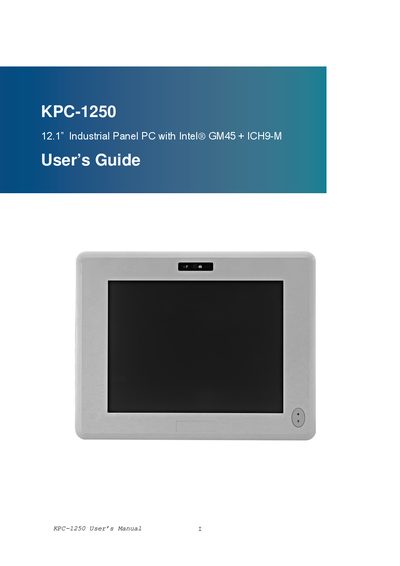

The KPC-1250 is an industrial panel PC from Quanmax with a 12.1-inch display and an Intel®GM45 + ICH9-M motherboard. It supports 100-240V input voltage and can operate in harsh environments.
This manual covers the KPC-1250 12.1" Industrial Panel PC, describing its hardware features, safety precautions, mounting options, and system configuration. It is intended for qualified service personnel and end‑users who need to install, operate, and maintain the unit.
Key sections include safety instructions, unpacking and ESD handling, VESA mounting, BIOS menu navigation, power‑voltage specifications, and driver installation procedures. The guide also contains regulatory compliance information and warranty policy details.
| Screen size | 12.1" |
|---|---|
| Processor | Intel® GM45 |
| Chipset | ICH9-M |
| Voltage ratings | 100‑240V AC 10%, +12V/6.7A 80W or +24V/3.75A 90W |
The external power adaptor is rated 100‑240V AC 10% with either +12V/6.7A (80 W) or +24V/3.75A (90 W).
Use an ESD workstation, wear wrist straps or smocks, keep components in antistatic packaging, and handle boards by the edges.
High voltages are present inside the chassis when the power cord is plugged in; turn off power and disconnect the cord before removing the cover.
