Promise SATAII150 and SATA300 TX Series User Manual

SATAII150 and SATA300 TX Series User Manual is a user manual for Promise Technology's SATAII150 and SATA300 TX series products.

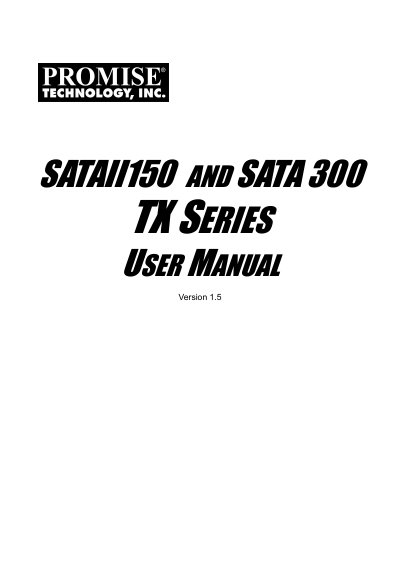

Promise SATAII150 and SATA300 TX Series User Manual - cover page
Brand
SATAII150
Category
Other device
Document type
User Manual
Language
English
Pages
44
File format
PDF
File size
477 KB
Published
09 May, 2012
Updated
30 September, 2023
MD5 checksum
D585FA4C0CC34AE5450377C492009152
PDF
Promise SATAII150 and SATA300 TX Series User Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing and configuring Promise's SATAII150 and SATA300 TX Series Serial ATA controller cards. It includes hardware unpacking, PCI slot installation, drive connection, driver setup for Windows and Linux, and basic configuration.

Additional sections cover key features, supported operating systems, technical specifications, troubleshooting tips, warranty information, and contact details for technical support worldwide.

What's inside

  • Introduction
  • Installation
  • Driver Installation
  • Partition and Format
  • Troubleshooting & Tips
  • Support
  • Warranty

Specifications

Form factorLow‑profile
PCI slot speed33 MHz or 66 MHz
Dimensions (SATAII150 TX2plus)2.25 × 4.69 × 0.33 in (57 × 119 × 8 mm)
Operating temperature32 °F to 122 °F (0 °C to 50 °C)
Operating humidity5 % to 95 % non‑condensing

Frequently asked questions

Which operating systems are supported by the SATAII150 and SATA300 TX Series?

Windows Server 2003, Windows XP, Windows 2000, RedHat Linux and SuSE Linux are supported.

What are the dimensions of the SATAII150 TX2plus card?

The SATAII150 TX2plus card measures 2.25 × 4.69 × 0.33 inches (57 × 119 × 8 mm).
