IB520 SBC User Manual

IB520 is AMD Geode LX 3.5-inch disk size SBC user manual, which contains product introduction, specifications, installation, BIOS setup, driver installation and other contents

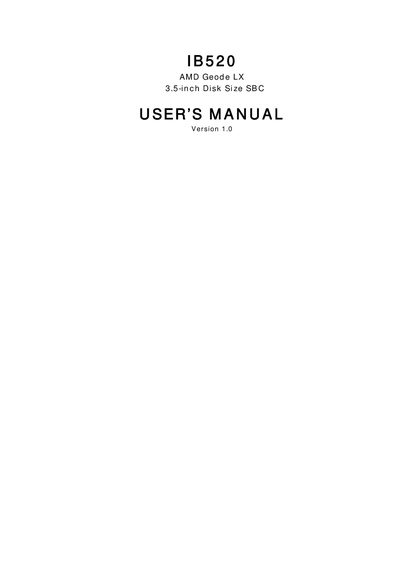

IB520 SBC User Manual - cover page
Brand
IB520
Category
Hard disk
Document type
User Manual
Language
English
Pages
54
File format
PDF
File size
1.2 MB
Published
09 May, 2012
Updated
30 September, 2023
MD5 checksum
5D5E2D100256F814711A456C97C3F1BC

About this manual

The IB520 is a 3.5‑inch disk size single board computer that incorporates an AMD Geode LX processor (433 MHz LX700 or 500 MHz LX800). It offers one DDR SO‑DIMM socket (up to 1 GB), a Realtek RTL8100C 10/100 Mbps Ethernet controller, an integrated 2D VGA controller for CRT and TFT LCD displays, four USB 2.0 ports, two COM ports, a PCI‑104 expansion slot, and optional Compact Flash and PCMCIA connectors.

The manual covers product description, a checklist of supplied items, detailed specifications, board dimensions, installation procedures, BIOS configuration, driver installation for audio, VGA, and other components, as well as an appendix with low‑level programming examples and CMOS backup instructions.

What's inside

  • Introduction
  • Product Description
  • Checklist
  • Specifications
  • Board Dimensions
  • Installation
  • BIOS Setup
  • Drivers Installation
  • Appendix

Specifications

ProcessorAMD Geode LX 433 MHz (LX700) / 500 MHz (LX800)
Memory1 DDR SO‑DIMM socket, max 1 GB
EthernetRealtek RTL8100C 10/100 Mbps
GraphicsIntegrated LX800/LX700 2D VGA controller (CRT & TFT LCD)
USB Ports4 × USB 2.0
Expansion SlotPCI‑104
Dimensions145 mm × 102 mm
Watchdog TimerSoftware programmable 1‑255 s reset

Frequently asked questions

What processor does the IB520 SBC use?

It uses an AMD Geode LX processor, available at 433 MHz (LX700) or 500 MHz (LX800).

How much memory can be installed on the IB520?

The board has one DDR SO‑DIMM socket that supports up to 1 GB of memory.

How do I clear the CMOS settings on the IB520?

Move jumper JP2 from position 1‑2 to 2‑3 to clear CMOS, then return it to 1‑2 and follow the boot sequence.
