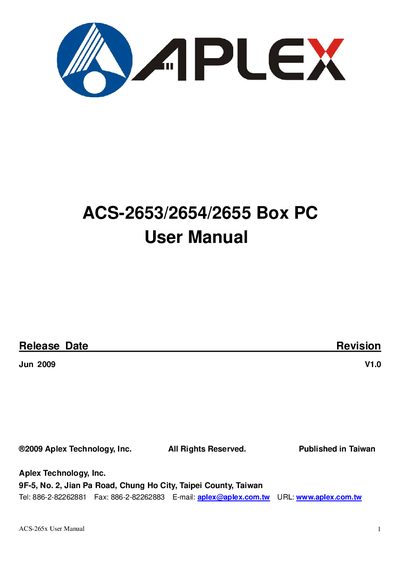

ACS-265x User Manual, introduces the features and usage methods of ACS-265x
This manual covers safety warnings, specifications, dimensions, and a brief description of the ACS‑2653/2654/2655 Box PC series. It guides users through hardware installation, including CPU, HDD, PCI, memory, jumpers, and internal/external connectors, as well as power‑mode selection.
Later chapters describe BIOS setup (basic, advanced, PCI/PNP, boot, security, chipset) and driver installation for Intel chipset, graphics, LAN, audio, and Intel AMT. The document also includes FCC/CE compliance information and a license agreement for Intel Management Engine Interface.
| Processor | Intel Core 2 Duo Socket P processor with 533/667/800MHz FSB |
|---|---|
| Chipset | Intel GM965 + Intel ICH8ME |
| Memory | 2 x DDR2 DIMM sockets, up to 4 GB, 667/533 MHz |
| Storage | 1 x 2.5" SATA HDD space and 1 x CF slot |
| Power Input | 11~32 V DC, AT/ATX mode supported |
| Dimensions (W×H×D) | 203.2 mm × 268 mm × 73.3‑125 mm (depending on model) |
| Net Weight | 4.5 kg – 5 kg (depending on model) |
It uses an Intel Core 2 Duo Socket P processor with 533/667/800 MHz front‑side bus.
The unit accepts 11 V to 32 V DC and can operate in AT or ATX power‑mode.
There are four USB ports on the I/O side and two optional USB ports on the front panel.
