Bernhard USBprog User Manual

This is the USBprog User's Manual, which provides an overview of the USBprog hardware and software, as well as instructions for setting up and using the hardware and software.

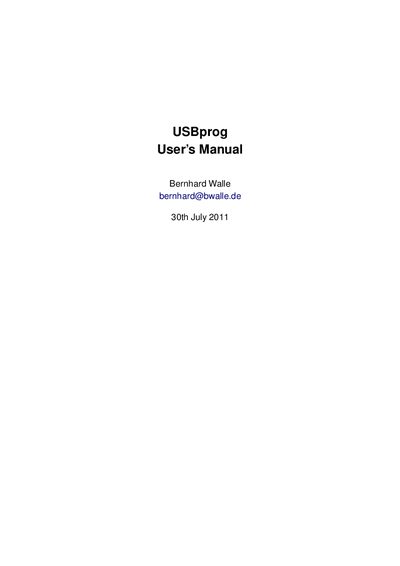

Bernhard USBprog User Manual - cover page
Brand
Bernhard
Category
Other Electronics
Document type
User Manual
Language
English
Pages
38
File format
PDF
File size
539 KB
Published
09 May, 2012
Updated
29 September, 2023
MD5 checksum
867D376B117E91707925DCD4D78A0836
PDF
Bernhard USBprog User Manual PDF

About this manual

This manual describes the USBprog hardware (version 3.0) and its associated software. It covers the hardware layout, connectors, jumpers, LEDs, and how to initialise the bootloader, as well as the supported operating systems and firmware options.

The document also includes detailed instructions for connecting the device, flashing the bootloader and firmware with AVRdude, and using the graphical and command‑line interfaces. Common firmwares and troubleshooting tips are provided, along with references to support resources.

What's inside

  • Overview
  • Getting Started with the Hardware
  • Getting Started with the Software
  • USBprog Software Reference
  • Common Firmwares
  • Bibliography

Specifications

Hardware version3.0
USB connector typeType B
Supply voltage for programmed circuit5 V
Maximum USB current500 mA

Frequently asked questions

Which operating systems are supported by the USBprog software?

The software runs on Microsoft Windows 2000, XP, Vista and 7, Linux (openSUSE and Ubuntu) and MacOS X 10.5.

Download PDF (539 KB)
