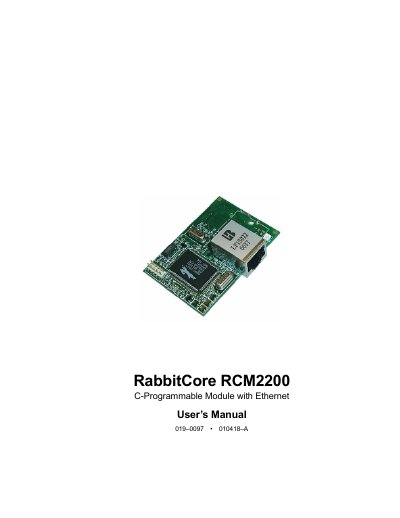

This is a user manual that introduces the functions and features of the RCM2200 C-Programmable Module.
This manual provides a complete overview of the Rabbit RCM2200 microprocessor module, including its integrated Ethernet port, memory resources, I/O capabilities, and power requirements. It also describes how to use the programming cable, configure the module, and develop applications with Dynamic C.
Additional sections cover hardware reference diagrams, software libraries, sample programs, and detailed electrical and mechanical specifications, helping engineers design and troubleshoot embedded control systems based on the RCM2200.
| Physical dimensions | 1.60" × 2.30" × 0.86" (41 mm × 58 mm × 22 mm) |
|---|---|
| Microprocessor | Rabbit 2000 running at 22.1 MHz |
| I/O lines | 26 parallel I/O lines (16 configurable, 7 fixed inputs, 3 fixed outputs) |
| Memory | 256 KB flash, 128 KB SRAM |
| Ethernet port | 10Base‑T RJ‑45 connector |
The module uses a Rabbit 2000 microprocessor operating at 22.1 MHz.
It provides 26 parallel I/O lines, with 16 configurable, 7 fixed inputs and 3 fixed outputs.
The module includes a 10Base‑T RJ‑45 Ethernet port.
It contains 256 KB of flash memory and 128 KB of SRAM.
