DP6 is a 5.6-inch HD monitor with 1280x800 resolution that supports HDMI, Component, and HD/SDI inputs.

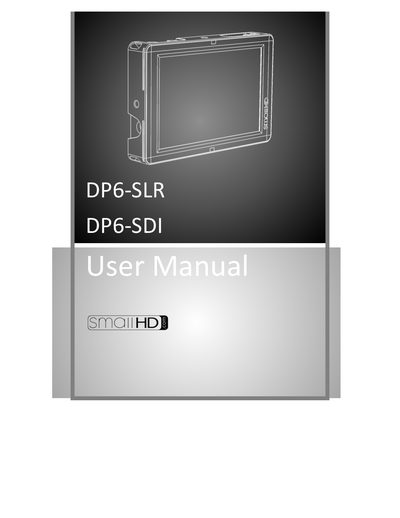

This manual introduces the SmallHD DP6 field monitor, highlighting its 5.6‑inch HD screen with a 1280×800 resolution and durable milled‑aluminum construction. It describes the monitor’s wide range of inputs, including HDMI, Component, and HD/SDI, and outlines optional accessories such as the acrylic screen protector, Sunhood, and HDMI splitter.
The guide covers power configurations, detailing the DC input polarity (center‑pin positive), voltage range (7 V‑18 V), and compatible battery brackets for Canon, Sony, and Panasonic batteries. It also explains menu navigation, preset settings, firmware updates, and warranty information, concluding with support resources.
| Screen resolution | 1280×800 |
|---|---|
| Screen size | 5.6 inch |
| DC input voltage range | 7 V to 18 V |
| Maximum input voltage | 18 V DC |
| Battery bracket output voltage (Canon) | 7.4 V |
| Battery bracket output voltage (Sony) | 7.2 V |
| Battery bracket output voltage (SmallHD) | 12 V |
| Combined weight with SmallHD bracket & battery | 2202 g |
The DP6’s DC input is center‑pin positive; using the wrong polarity can cause damage.
The DP6 can accept up to 18 V DC on its power input.
Running on two LP‑E6 batteries provides about 4 hours of continuous operation.
A video demonstration is available at http://videos.smallhd.com/d-tap-polarity-for-smallhd-monitors/.
