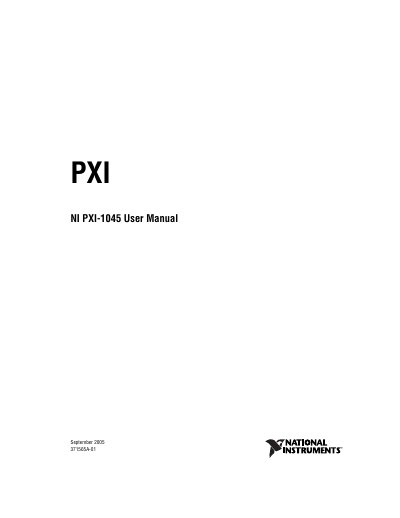

NI PXI-1045 User Manual, introduces the features and characteristics of PXI-1045
This manual covers everything needed to set up the NI PXI-1045 18‑slot chassis, from unpacking and required accessories to detailed installation steps, safety considerations, and system configuration using NI software. It also includes information on optional equipment, rack‑mount kits, and backplane features.
Later chapters describe routine maintenance procedures, service intervals, cleaning, fan‑filter replacement, and troubleshooting. Appendices provide full specifications, pinout tables, and technical support resources.
| Number of slots | 18 |
|---|---|
| Power input type | AC |
The kit contains the PXI-1045 chassis, filler panels, an AC power cable, a safety and RF interference guide, a driver CD-ROM, chassis number labels, and a driver CD-ROM with NI PXI chassis software.
