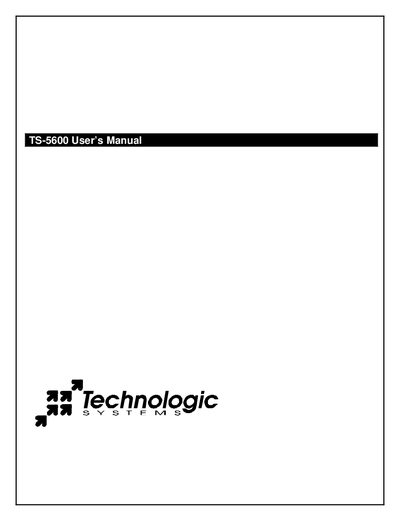

This document is the user manual for TS-5600, describing the features and characteristics of the product.
This manual describes the TS-5600 compact, full‑feature PC‑compatible single board computer based on an AMD Elan520 processor. It covers hardware features, optional daughter boards, and the differences from a standard PC.
Key sections include power requirements, memory configuration, flash storage, serial and Ethernet interfaces, and expansion options such as PC/104 and PCMCIA. Appendices provide board diagrams, BIOS interrupt functions, and reference links.
| Processor | AMD Elan520, 133 MHz |
|---|---|
| Power Supply | 5 VDC regulated, up to 800 mA (typical 300 mA under Linux) |
| SDRAM | 32 MB total (640 KB base, 31 MB extended, 128 KB shadow) |
| Flash Memory | 2 MB total (128 KB BIOS, 1920 KB SSD A drive) |
| Optional Non‑volatile SRAM | 32 KB |
It needs a regulated 5 VDC supply capable of up to 800 mA, with typical low‑usage current around 300 mA when running Linux.
The board includes 32 MB of SDRAM, providing 640 KB of base memory, 31 MB of extended memory, and 128 KB of shadow RAM for the BIOS.
The TS-5600 has 2 MB of flash memory, with 128 KB reserved for the BIOS and the remaining 1920 KB used as a solid‑state drive (drive A).
No, supplying voltages over 6 VDC may damage the board.
