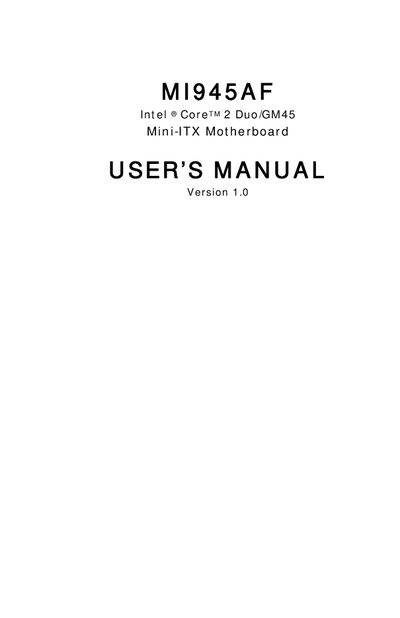

This MI945AF User's Manual introduces the features and characteristics of the MI945AF motherboard, including product description, installation, BIOS setup, and driver installation.
The MI945AF is a Mini‑ITX board that uses the Intel® GM45 Express Chipset for embedded computing. It supports Intel® Core 2 Duo (Penryn) mobile processors, dual‑channel DDR2 800 MHz memory up to 4 GB, integrated Gigabit LAN, and a range of video outputs including VGA and LVDS. The board measures 170 mm × 170 mm and includes connectors for SATA, USB, audio, and serial ports.
The manual covers a checklist of package contents, detailed installation procedures for CPU, memory, and jumpers, BIOS configuration, and driver installation for chipset, graphics, audio, and network. Appendices provide I/O port maps, IRQ assignments, and watchdog timer configuration.
| CPU Supported | Intel® Core 2 Duo (Penryn) mobile processors |
|---|---|
| CPU Voltage | 0.700V ~ 1.5V |
| Maximum CPU Speed | Up to 2.53 GHz |
| CPU Front‑Side Bus | 667 MHz / 800 MHz / 1066 MHz |
| Memory Type | DDR2 667/800 MHz SoDIMM x2, Max 4 GB |
| USB Ports | 8 ports USB 2.0 |
| SATA Ports | 4 ports |
| Watchdog Timer | Yes (256 segments, 0‑255 sec) |
The board supports up to 4 GB of DDR2 memory using two 667/800 MHz SoDIMM slots.
The MI945AF provides four SATA ports.
