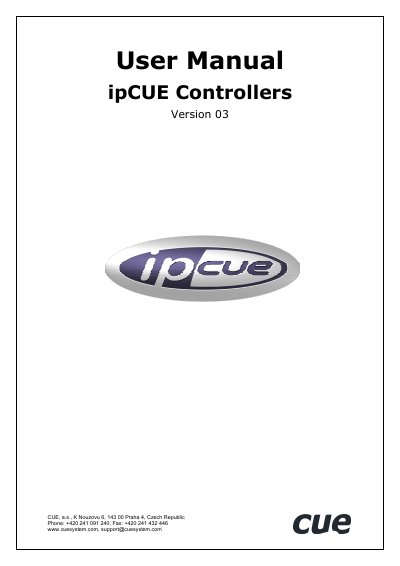

This manual introduces the basic functions, features and usage of ipCUE controllers.
The ipCUE controllers are Ethernet‑IP enabled devices designed for single‑room to large multi‑room installations. They offer bi‑directional serial ports (RS‑232/422/485), IR outputs, general I/O, analog inputs, and 24 V relay outputs, plus a built‑in web server for configuration and diagnostics.
The manual covers model variants, box contents, detailed specifications, quick‑start power and network setup, front and rear panel descriptions, mounting options, and the Admin Web Server interface. Licensing information and legal notices are also included.
| Ethernet connection | 10/100 BaseT LAN, RJ-45 connector |
|---|---|
| Power output | 5 VDC (max. 1 A) |
| Internal RAM | 16 MB |
| Dimensions (ipCUE‑alpha) | 210 x 43.5 x 92 mm |
| Weight (ipCUE‑alpha) | 0.6 kg |
| Power consumption (ipCUE‑alpha) | 12 W |
The bi‑directional serial ports can be configured as RS‑232, RS‑422, or RS‑485.
